Radxa CM5 IO Board is an application board for the RADXA CM5

Powered by the CM5 module - the Radxa CM5 IO board enables access to the complete feature set this Computing Module provides.

Features:

Designed for Radxa CM5
Dimensions 160mm x 90mm
Multiple display interfaces, HDMI, 2x MIPI DSI, USB3.0 OTG Type C Port
M.2 E Connector
Ubuntu/Debian and Android support

Technical Details:

Supported CM´s

RADXA CM5 all variants

Connectivity

2 x USB 2.0 Type-A ports
1 x USB 3.0 HOST port ( 5Gbps, type A connector )
1 x USB 3.0 OTG Type-A port

1 x PCIe 1-lane Host, Gen 2 ( 5Gbps, x1 PCIe connector )
2 x SATA 7P connector, one shared with USB 3, one shared with PCIe

1x microSD card slot

40 x GPIO pin header

Networking

1x Gigabit Ethernet RJ45 with PoE support

Video

1x HDMI up to 4K x 2K@60HZ

2x MIPI DSI 4 lanes up to 1920 x 1080@60HZ, support dual display

2x MIPI CSI camera input

Audio

3.5mm headphone jack with mic support

Other

Lion battery connector

RTC battery connector

PoE header

FAN header

Power

DC 12V 2.5/5.5mm

or 4P ATX PSU with floppy power connector

Dimension

160 mm × 90 mm

Product lifetime

Radxa CM5 IO Board will remain in production until at least Sep 2029

RADXA ROCK 5

Price

Collections

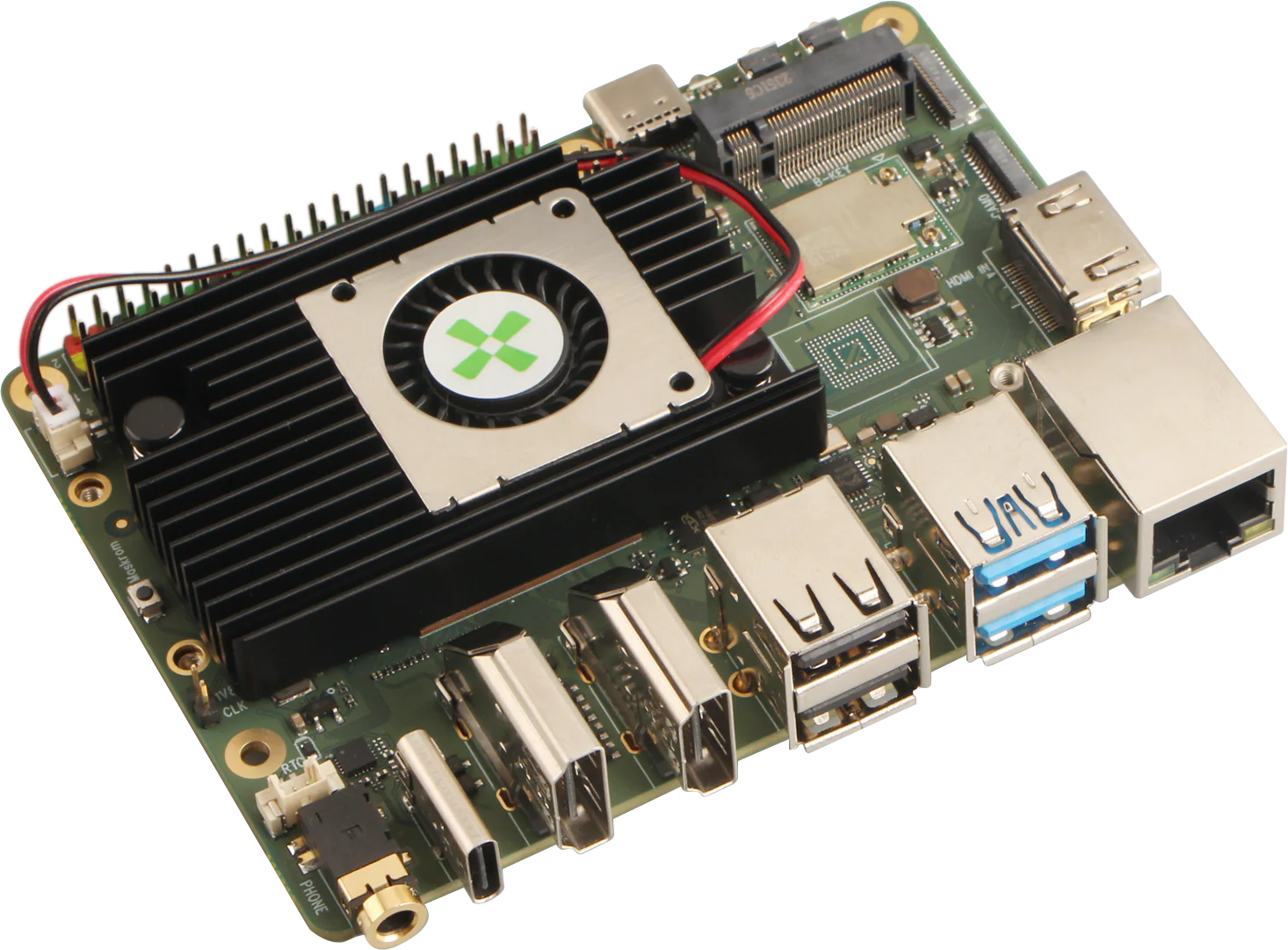

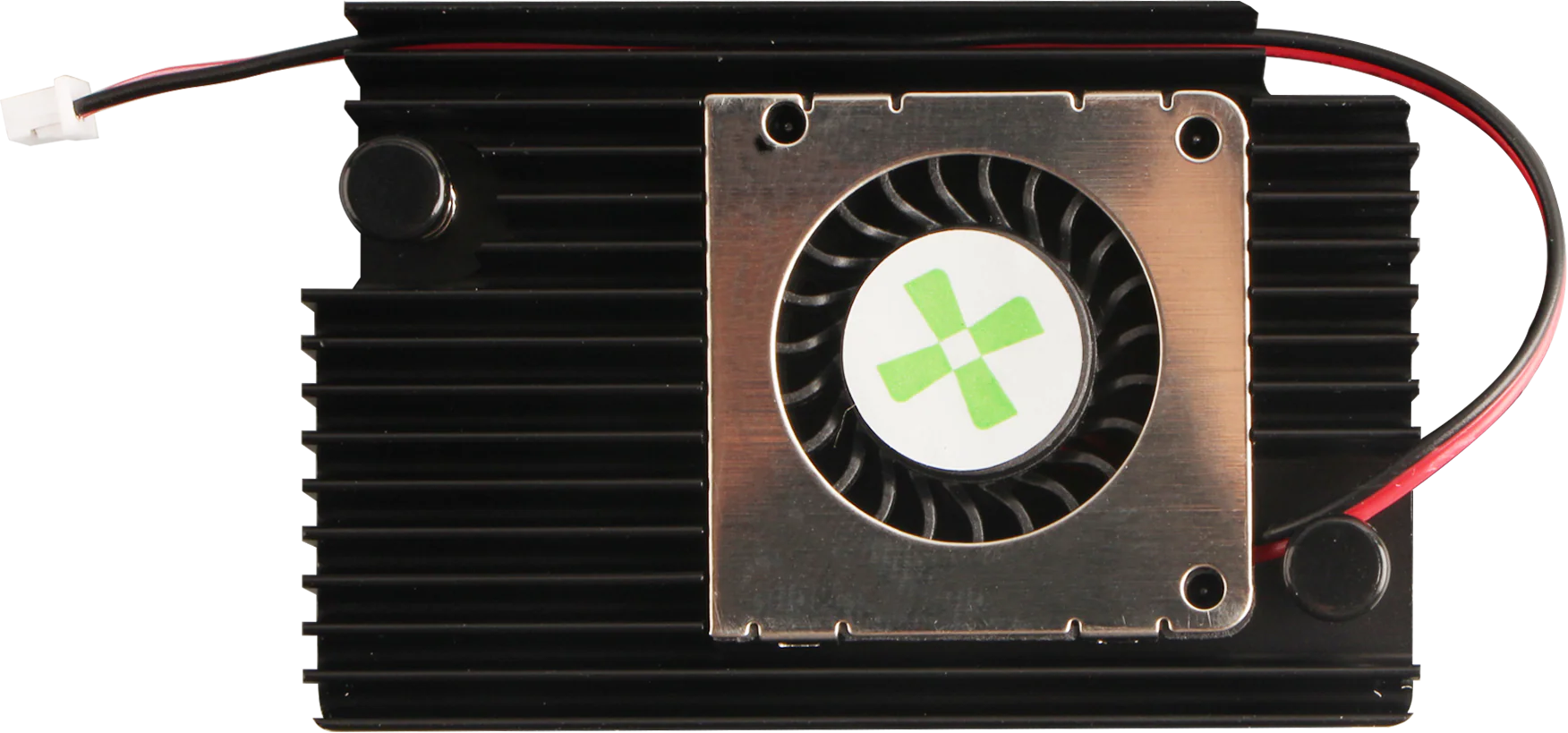

Heatsink 6240B for RADXA ROCK 5B(+)

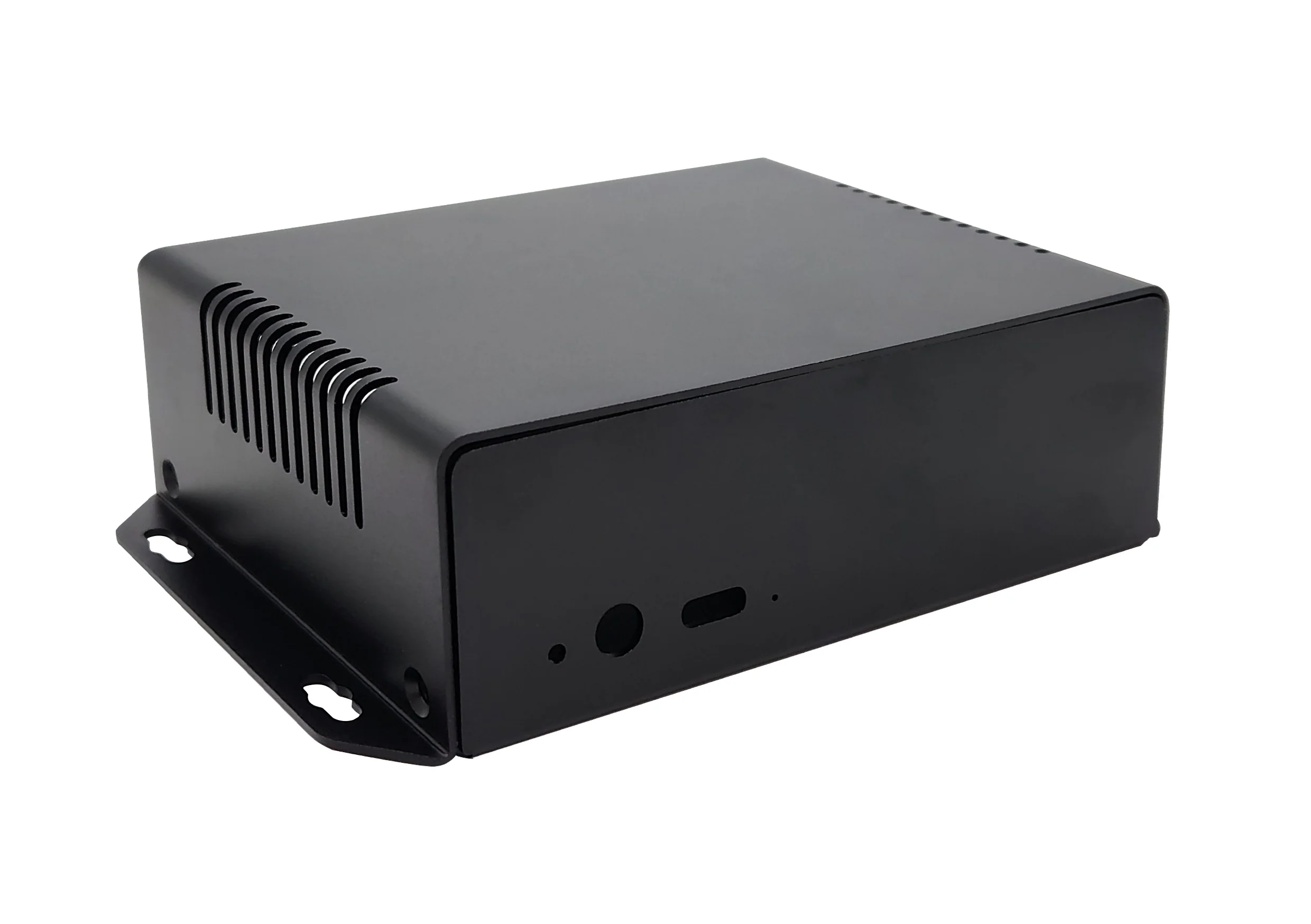

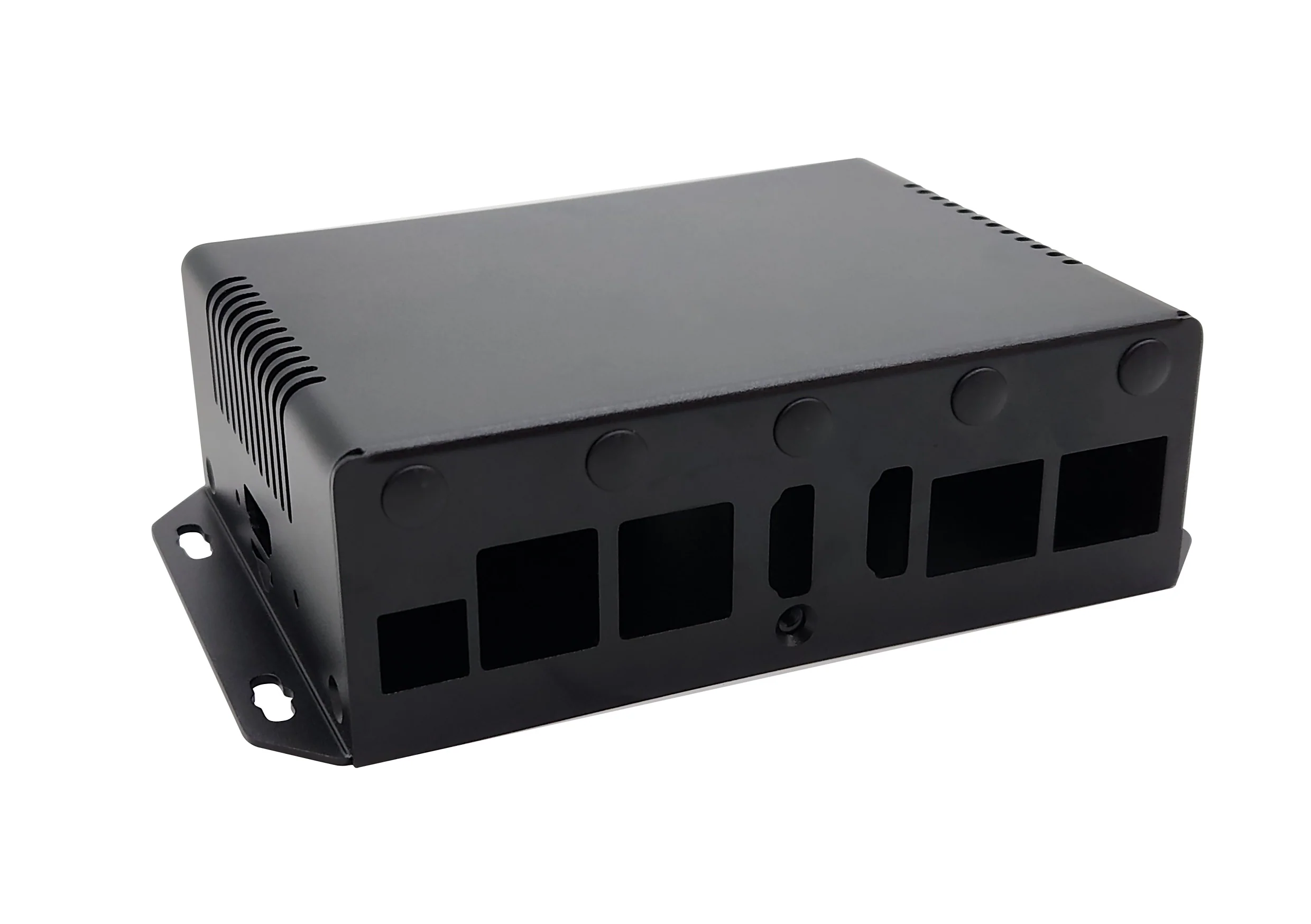

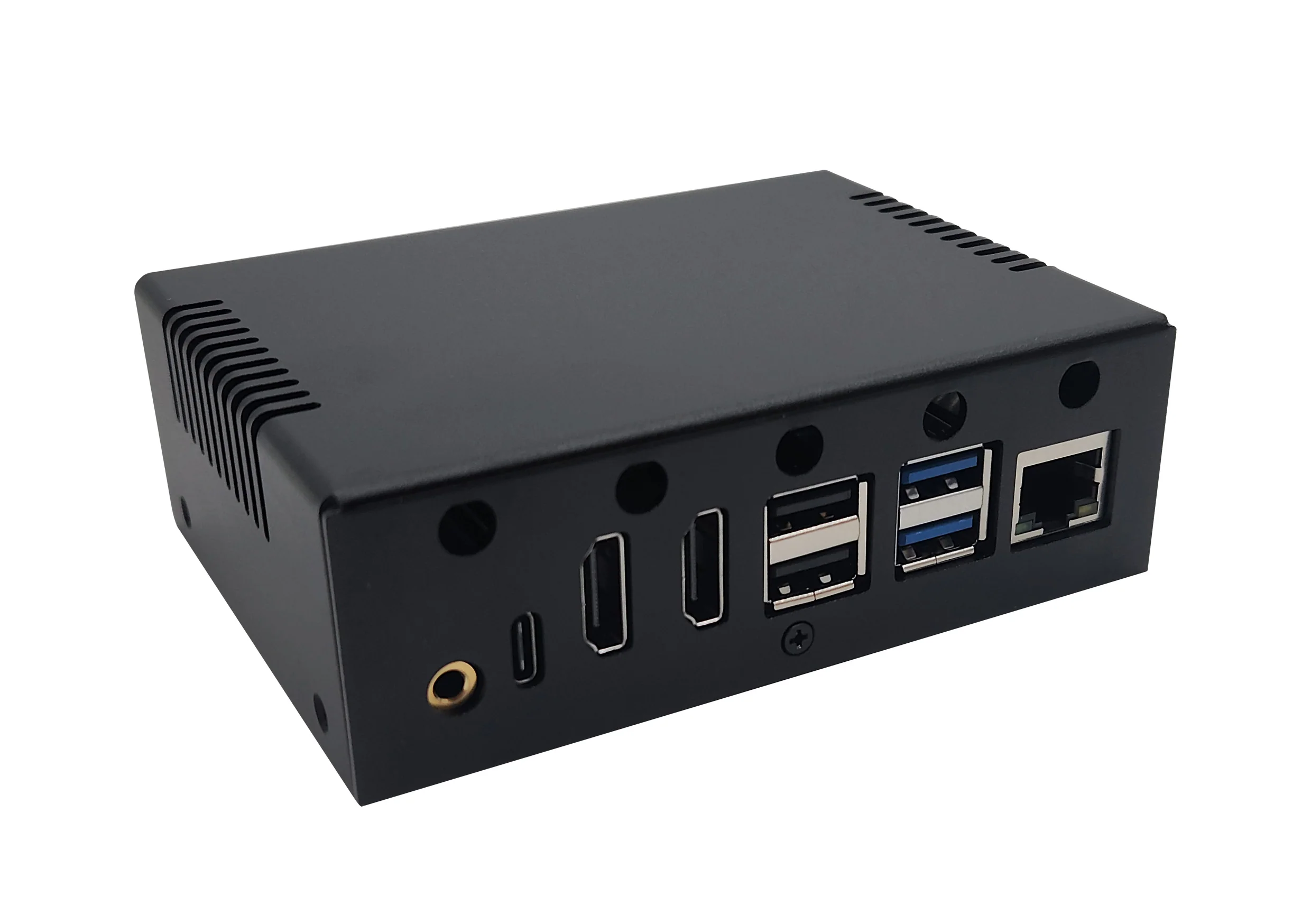

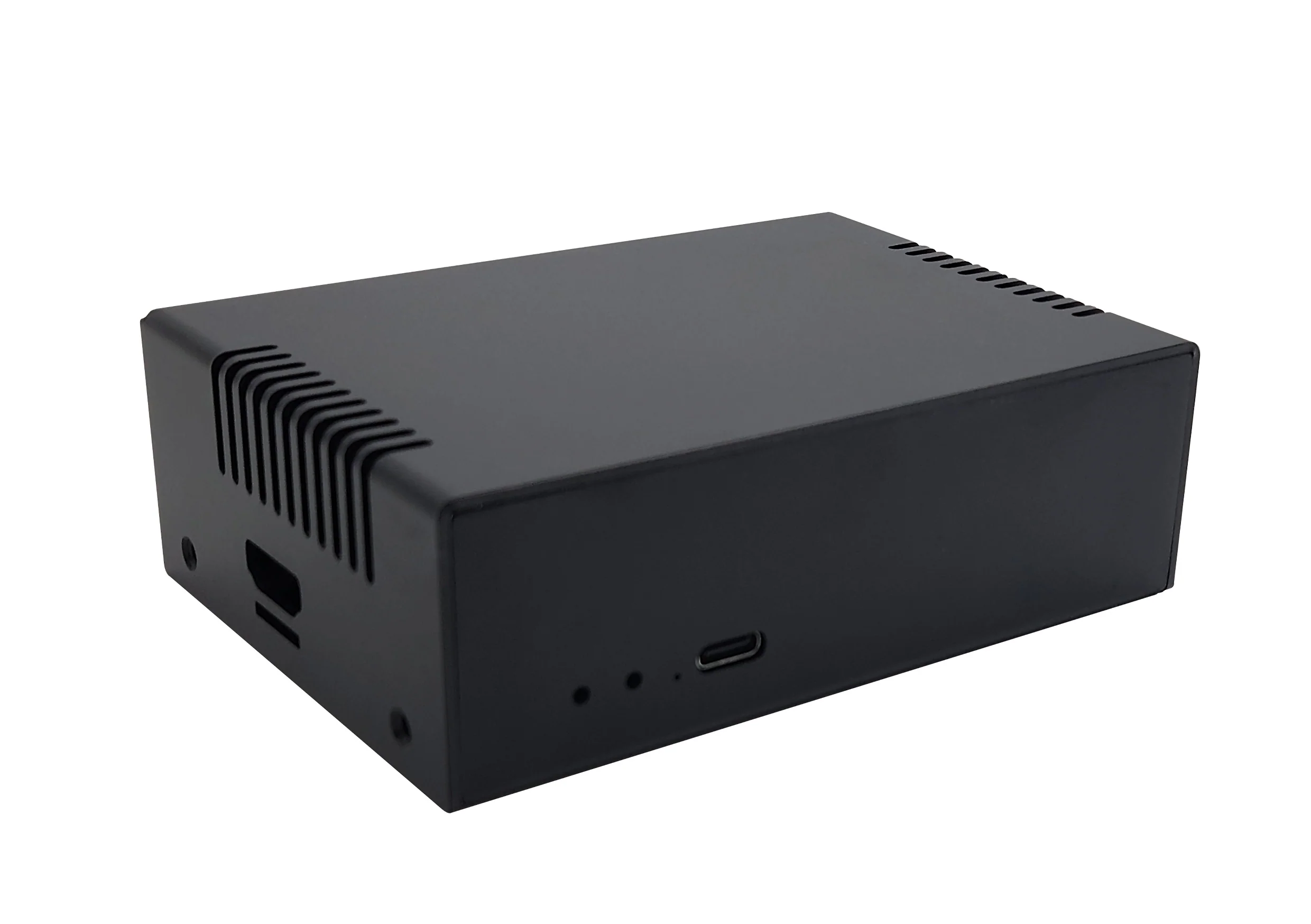

Radxa Metal Case for Rock 5B+
