QuinLED Dig-Octa Power-7HC

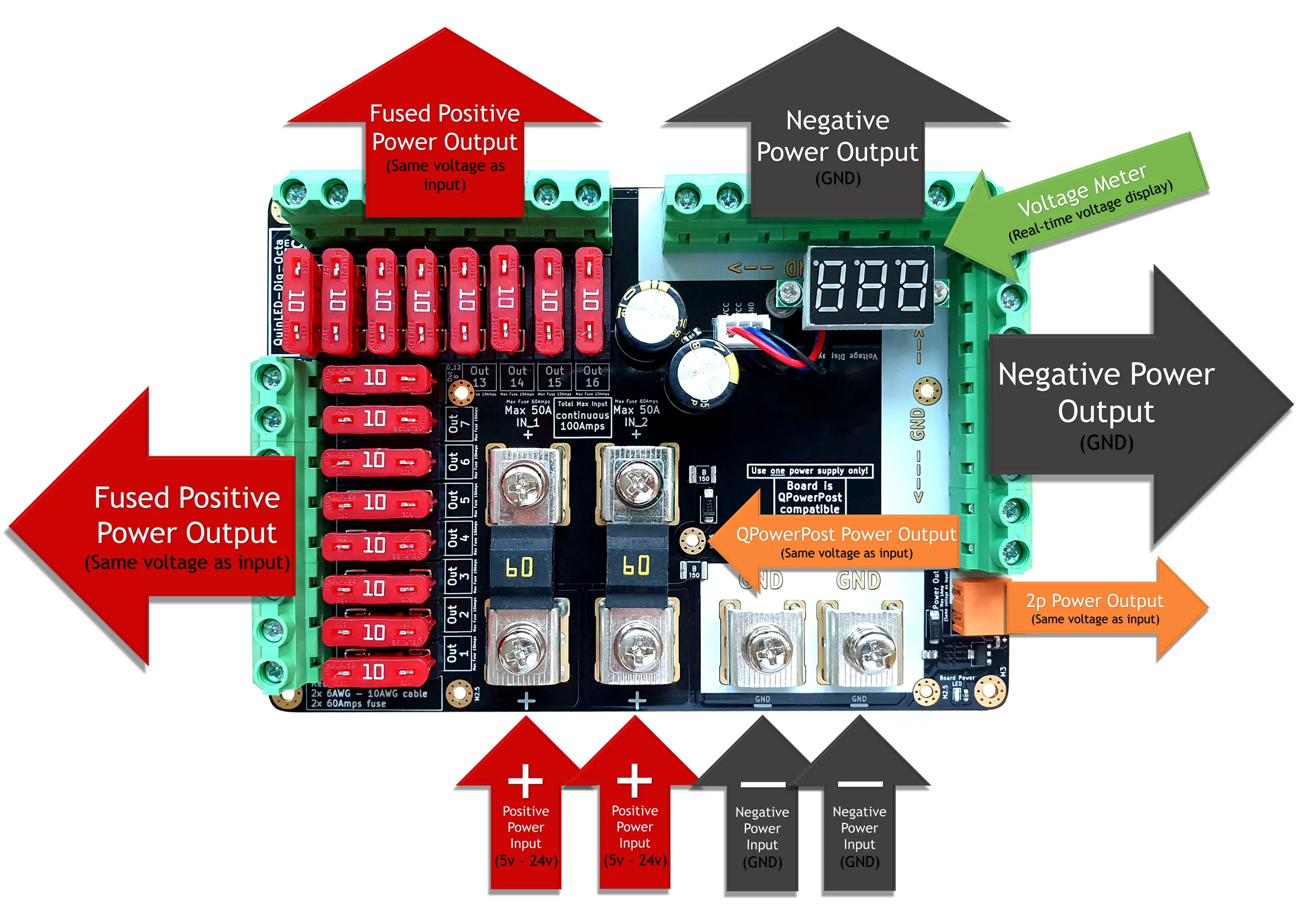

The Dig-Octa Power-7HC power board provides up to 100A current via a high number of 32 screw terminals.Ā
Power-7HC has increased copper thickness, 2x M5 bare screw power terminals which are equipped with 2x 60A fuses.
Product Specifications:
- 2x M5 bolt lugs for both positive and negative
- Board recommended max 100Amp continuous load total
- 16x 7.62mm output screw terminals
- 5v-24v capable
- āBroken Fuseā light per output
- Onboard capacitors
- Onboard Voltage display
- 4x M3 mounting holes
Special Features:
- Equipped with QPowerPost*Ā (power distribution without wires)
- Extra 1x 5.08mm pluggable terminal (VCC and GND out)
- Double up feature**
Ā
*) what is QPowerPost?
QPowerPost is a smart and unique solution to supply power via power posts to the brainboard in a stack. All power boards in the Dig-Octa line of products provide this feature.
It allows a flexible and quick installation of the complete stack and works without additional wiring.
**) what is Double up feature?
If more power (up to 20Amps) or a thicker cable is required, using a SV5.5-5 fork crimp 2 positive and 2 negative output terminals can be combined allowing up 10AWG/5.2mm2 cable to be connected over 2 output ports
Ā ***) in depth product details to Power-7HC you findĀ @QuinLED.info (pls follow the link)
Original: $44.99
-65%$44.99
$15.75
